Panasonic PT-MZ880

Panasonic PT-MZ880 Doporučený



Kalkulátor projekční vzdálenosti Panasonic PT-MZ880

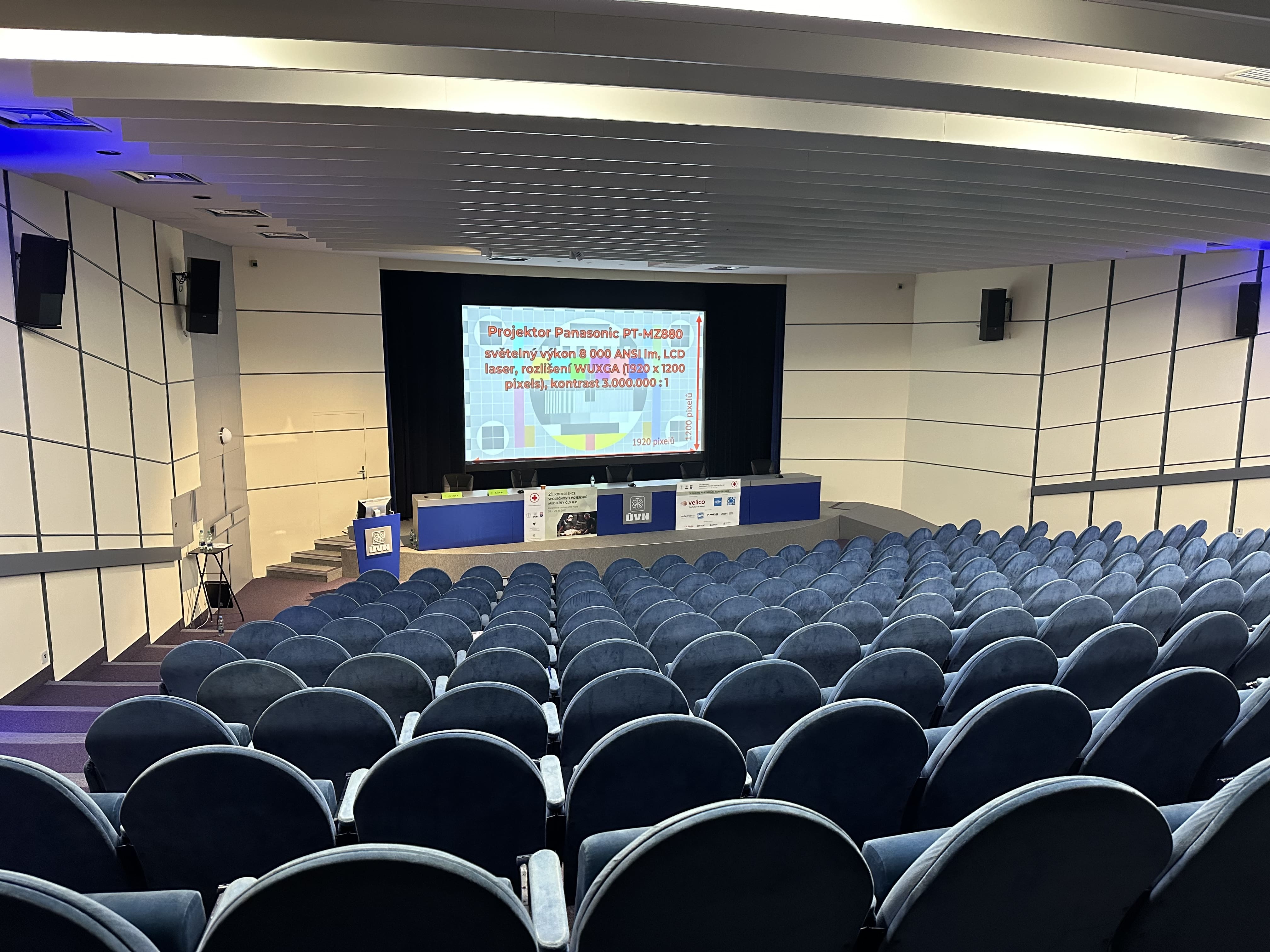

Panasonic PT-MZ880, LCD laser, 8000 ANSI lm, WUXGA (1920 x 1200 pixels) rozlišení, kontrast 3.000.000 : 1


Projector type LCD projectors
LCD panel
Panel size 19.3 mm (0.76˝) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 2,304,000 (1920 x 1200) pixels x 3
Light source Laser diodes
Light output*1*2 8,000 lm
Time until light output declines to 50 %*3 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast ratio*1 3,000,000:1 (Full On/Full Off)
(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1] or [2]. HDMI signal input)
Screen size (diagonal) 1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m (100–400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens Powered zoom (throw ratio 1.61–2.76:1),
powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for supplied lens; optional lenses also available)
Lens shift
Vertical
(From the origin point of the lens mounter)
±67 % (powered) (for supplied lens; optional lenses also available*4)
Horizontal
(From the origin point of the lens mounter)
±35 % (powered) (for supplied lens; optional lenses also available*4)
Keystone correction range Vertical: ±25 °, Horizontal: ±30 ° (for supplied lens; optional lenses also available*4)
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals
HDMI IN HDMI 19-pin x 3 (Compatible with HDCP 2.3, Deep Color, 4K/60p*5 signal input), CEC supported
COMPUTER IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
SERIAL/MULTI SYNC IN D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
MULTI SYNC OUT D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
AUDIO IN M3 stereo mini-jack x 1
AUDIO OUT M3 stereo mini-jack x 1
DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3, Deep Color, 4K/60p*5*6 signal input)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
DC OUT USB Connector (Type A) x 1 (Output 5 V/2 A)
Power supply AC 100–240 V, 50/60 Hz
Power consumption*7
Maximum power consumption 490 W (5.4–2.6 A) (510VA)
(Power consumption is 465 W at 200–240 V)

On-mode power consumption
(Light power)
[NORMAL]: 435 W (100–120 V), 415 W (200–240 V), [ECO]: 315 W (100–120 V), 300 W (200–240 V), [QUIET]: 310 W (100–120 V), 295 W (200–240 V)
Cabinet materials Molded plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1 34 dB (NORMAL/ECO), 27 dB (QUIET)
Dimensions
(W x H*8 x D)
561 x 224 x 439 mm (22 3/32" x 8 13/16" x 17 9/32") (with supplied lens)
Weight*9 Approx. 18.6 kg (41.0 lbs) (with supplied lens)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*10, operating humidity: 20–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Smart Projector Control for iOS/Android™, Geometry Manager Pro*11







Specifikace projektoru Panasonic PT-MZ880.

Manuál - příručka k obsluze projektoru Panasonic PT-MZ880.



Volitelné objektivy k projektoru Panasonic PT-MZ880:



01 Key Feature

Well-Balanced
Picture Quality

Refined optical engine balances brightness and color for vivid images without turning the lights off. Detail Clarity Processor 4, Dynamic Contrast, and Daylight View Basic optimize display to suit content and environment.

More Information

02 Key Feature

Flexible Design Fits
Any Space

Unobtrusive cabinet, 26 dB*2 operation, 4K-signal-ready*3 DIGITAL LINK and CEC-compatible HDMI® terminals (x3), Geo Pro*4, Edge-Blending, and support for optional
ET-ELU20 Ultra-Short-Throw Zoom Lens*5
enable flexible projection.

More Information

03 Key Feature

Efficient Eco-Friendly Reliability

Energy consumption is reduced by about
20 %*6 to meet your organization’s CSR policy commitments. Multi-Laser Drive Engine and reusable*7 Eco Filter extend maintenance to 20,000 hours*8 with Early Warning software*9 reducing labor and waste.

More Information

*1 Measurement, measuring conditions, and method of notation are all compliant with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.

*2 PT-MZ780/PT-MZ680 in Quiet Mode, 32 dB in Normal Mode/Eco Mode. Operating noise for PT-MZ880 is 27 dB (Quiet Mode), 34 dB (Normal Mode/Eco Mode).

*3 Supports signals up to 4K/60p (YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK). Signal resolutions differing from projector resolution are converted to the projector’s resolution (1920 x 1200 dots).

*4 Some functions available in Geo Pro software are not supported by the PT-MZ880 Series. Download Geometry Manager Pro free from the PASS website.

*5 All models ship with standard 1.61–2.76:1 powered zoom lens.

*6 PT-MZ880 excluded. Approximate value according to Panasonic testing in comparison to equivalent models in PT-MZ770 Series.

*7 Filter replacement recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.

*8 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [2https://panasonic.net/cns/projector/products/mz880/img/features/feature001.jpg" alt="Conventional Projector / Daylight View Basic" style="margin: 0px; padding: 0px; border: 0px; font: inherit; vertical-align: bottom; max-width: 100%; height: auto;" />

Detail Clarity Processor 4

Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms extract data from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for increased text definition and clearer detail resolution in video and graphics.

Detail Clarity Processor 4

Flexible Design Fits Any Space

Unobtrusive Cabinet Blends into the Room

Elegant new cabinet styling helps these projectors blend into the room environment. Use of black for the recessed base makes the side and front panels appear slimmer. By combining unobtrusive styling with quiet operation and clear image visibility, the projection (not the projector) becomes the focus of attention. All-black versions are available for easy concealment in dark environments, such as museums.

Unobtrusive Cabinet Blends into the Room

Quiet Operation Increases Immersion

With lessons, meetings, conferences, and other events increasingly being held online, it’s important that noise from the projector doesn’t draw attention away from the presentation. Silent projection helps people focus, whether they’re in the room or participating remotely. PT-MZ880 Series includes a Quiet Mode enabling almost inaudible 26 dB* (PT-MZ780/MZ680) or 27 dB* (PT-MZ880) operation, helping these projectors fit unobtrusively into the installation environment while keeping attention focused on the presentation.

* Operating noise is 32 dB in Normal Mode/Eco Mode (PT-MZ780/MZ680) and 34 dB in Normal Mode/Eco Mode (PT-MZ880).

Optional Powered Lenses Including New Ultra-Short-Throw Zoom Lens

PT-MZ880 Series ships with a 1.61–2.76:1 powered zoom lens and supports a selection of optional fixed and zoom lenses to suit your preferred projector location. These optional lenses include a new zero-offset ET-ELU20 Ultra-Short-Throw Zoom Lens*1, making this projector series not only a great fit for education and corporate use, but also for museum exhibition. When paired with a compatible powered lens, projectionists can perform zoom, focus, and V/H lens-shift adjustments using the projector remote control or Smart Projector Control app*2.

*1 Use of lens requires PT-MZ880 Series with main projector firmware Ver. 1.03 or later. Visit PASS for more information.

*2 Some app functions are not supported by the PT-MZ880 Series. Check device compatibility at App Store or the Google Play Store.

Multi-Screen Support System

Edge Blending

Edges of adjacent screens can be blended and their brightness controlled.

Color Matching

Corrects color reproduction variations of each projector via PC control software.

Digital Image Enlargement

Digital zoom* up to 3x (H/V). Up to nine images (3 x 3) can be edge-blended to create large multi-screen images.

* While input resolution will not change, maintaining image quality is not possible for images enlarged horizontally and vertically via the digital zoom function.

Multi-screen Support System

Contrast Sync and Shutter Sync

Contrast Sync synchronizes Dynamic Contrast value among multiple projectors connected via serial in/out terminals. This function increases the uniformity of individual images in a multi-screen system and reduces the visibility of overlapping areas of adjacent images for a seamless widescreen image. Shutter Sync, meanwhile, synchronizes shutter on/off timing for professional fade-in/fade-out effects.

Contrast Sync and Shutter Sync

* Includes fade-in and fade-out effects. Projector shutter functions can be set to operate individually if desired.

Geometry Manager Pro Software (Geo Pro Software) with Free Grid

Geo Pro software makes edge-blending calibration and screen geometry adjustments via Windows® PC easy. Overlay Free Grid on the projected image to reshape distorted areas by adjusting the position of node or V/H line control-points. Grids of between 2 x 2 and 11 x 11 lines are selectable, and work progress is saved automatically so you can move freely between grid resolutions. Grid and control-point colors are selectable to ensure clear visibility over the projected image.

Note: some functions available in Geo Pro software are not supported by the PT-MZ880 Series. Download Geometry Manager Pro free from the PASS website.

Built-in Geometric Adjustment Functions

Geometric Adjustment is a suite of functions built into the projector operated via the projector remote control that allow installers to correct distortion when images are projected at an angle, onto curved screens, or over irregular screen surfaces. Correction extends to spherical, cylindrical, and other complex screen shapes without need of a connected PC. Maintain Aspect Ratio and independent Corner Adjustment simplify correction while the ability to save image-adjustment data is useful whenever correction settings needs to be disabled and reapplied, and for saving work progress as an adjustment profile is created.

Built-in Geometric Adjustment

Three HDMI Inputs Support CEC Commands

HDMI inputs are compatible with control signals sent via a CEC-command-compatible component, giving you limited control over the projector using the compatible source device’s remote control. The projectors power up from Standby and commence playback automatically on command from a compatible player, such as optional Wireless Presentation System PressIT, when connected to the projector via HDMI.

For more information on Wireless Presentation System PressIT, please click here.

Powers ON/OFF with CEC-compatible source device via HDMI®

Supports 4K Signal Input to Fit Your System Infrastructure

PT-MZ880 Series is compatible with 4K input signals, accepting 4K/60p video* via HDMI inputs or DIGITAL LINK terminal. This capability is useful when integrating the projectors into existing 4K-ready system infrastructure or when it’s necessary to distribute the same 4K signal to a network of endpoints with different display resolutions without having to use an external converter or to reencode the source.

* YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK. Signal resolutions differing from projector resolution are converted to the projector’s resolution (1920 x 1200 dots).

USB-DC Output Supports Wireless Presentation System PressIT

The projectors include a 5 V/2 A USB-DC terminal to power optional Wireless Presentation PressIT*1 or an HDMI network streaming device so that groups can easily share content to the big screen from their PCs or mobile devices. PressIT comprises a transmitter that works with Windows PC, Mac, and mobile devices, and a receiver that connects to your projector’s HDMI port. The transmitter connects to receiver wirelessly with a single press and allows users to display their device-screen at full size. You can also connect a supported network media streaming device via HDMI and USB for a neat, self-contained installation.

USB-DC Output Supports Wireless Presentation System PressIT

*1 Availability may vary by country or region. For more information on Wireless Presentation System PressIT, please click here.

*2 Device’s USB Type-C terminal requires support for DisplayPort™ ALT Mode (image output function) and DC power supply (5 V/0.9 A). Refer to product manual for more information. Android™ devices require a dedicated app.

Note: Accessories sold separately. Operation with third-party devices cannot be guaranteed.

Separate LAN and DIGITAL LINK Terminals

You can choose to control PT-MZ880 Series projectors via a dedicated LAN terminal or the HDBase-T™-based DIGITAL LINK connection. Both support 100Base-TX- and 10BaseT-compatible control signals via Panasonic, Crestron Connected™, AMX, and Extron® applications. With control enabled via LAN, DIGITAL LINK is free to transmit video over long cable runs of up to 150 m* (492 ft).

* 1080/60p signal transmission over distances up to 150 m (492 ft) requires CAT 5e or higher cable with optional ET-YFB200G DIGITAL LINK Switcher (not compatible with 4K signals) and the projector set to Long Reach Mode. Direct transmission is supported over distances up to 100 m (328 ft) for 1080/60p video signals or 50 m (164 ft) for 4K/60p video signals.

Works with Smart Projector Control App

Smart Projector Control is a remote-control app for iOS and Android™ devices that can be used to adjust, control, and monitor up to 64 projectors individually or simultaneously from anywhere within range of the wireless network. You can use the app to switch the unit on or off, select an input signal, and adjust the projector’s OSD menu settings via your device’s touchscreen while the projector is in standby or powered up with the shutter on. Projectionists can avoid delays by adjusting OSD settings via smartphone whenever OSD menu projection is inconvenient, such as immediately before a presentation starts. As well as enabling OSD menu operations, the app can be used to adjust lens settings, select test patterns, and focus the projection using your phone camera*1 from distances of up to 30 m*2 (98 ft) away. For more information, visit the Smart Projector Control website.

Works with Smart Projector Control App

Note: some Smart Projector Control app functions are not supported on the PT-MZ880 Series. Check device compatibility at App Store or the Google Play Store.

*1 Some mobile devices do not support projector autofocus function.

*2 When projecting a 300-inch image. Maximum distance is 3 m (10 ft) for a 100-inch image.

Color Adjustment

Correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.

Color Adjustment

Efficient Eco-Friendly Reliability

Reduced Power Consumption

Power consumption is about 20 %* less than previous models. These savings scale with every projector added to your fleet and make a significant contribution to your organization’s efforts to reduce its carbon footprint.

* PT-MZ880 excluded. Approximate value according to Panasonic testing in comparison to equivalent models in PT-MZ770 Series.

Multi-Laser Drive Engine with Failover Circuitry

Multi-Laser Drive Engine equips multiple laser modules and heat-resistant inorganic phosphor-wheel to enhance projection stability and efficiency. The modules are equipped with proprietary Failover Circuitry. If a single laser diode fails, only diodes in the affected series are bypassed rather than all diodes in the module, as is the case with other projectors. Projection can continue with imperceptible loss in brightness. Failover Circuitry provides an invaluable layer of insurance in situations where image display must be maintained.

Geometric Adjustment with Free Grid Correction via Remote Control

Note: specifications vary depending on projector model.

Low Maintenance 20,000-hour Operation

Projector maintenance is recommended at about 20,000 hours* to reduce time, cost, and effort to your organization. Long-life laser light-source eliminates hassles associated with lamp disposal (which sometimes contain specified toxic substances) and reduces your consumable parts inventory.

* Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Normal Mode, Dynamic Contrast [2https://panasonic.net/cns/projector/products/mz880/img/features/feature011.jpg" alt="ECO Management System" style="margin: 0px; padding: 0px; border: 0px; font: inherit; vertical-align: bottom; max-width: 100%; height: auto;" />

Less Packaging for Easy Disposal

Recyclable packing for the projector, accessories, and consumable parts—which can add up in the context of a fleet—is reduced in line with your organization’s CSR policy objectives.

Multi Monitoring & Control Software with Optional Early Warning Functions

Panasonic’s free AV management software for Windows® PC lets you monitor and control up to 2,048 compatible display devices of any brand via LAN to reduce maintenance hassle within display networks of any scale. Multi Monitoring & Control Software enables easy status monitoring, control-command execution, content playlist delivery, playback scheduling, and system map visualization. A free 90-day trial of optional Early Warning software is included and adds extra functionality. It notifies you in the event of a playback or device error, and sends alerts when symptoms of trouble are detected. Maintenance reminders help you to manage parts inventories and to schedule maintenance, while operational reports can be generated and exported as a text file. The software links with compatible network cameras for live screen monitoring, and you can monitor devices remotely from a tablet via VPN. Software data may be acquired via Web API and installed onto an existing monitoring application.

Multi Monitoring & Control Software with Optional Early Warning Functions

Note: Some functions require Multi Monitoring & Control Software for Windows Version 3.0 or later. Some functions may not be supported on some projector models. Purchase an optional license at PASS to continue using Early Warning functions after the free 90-day trial period expires.
